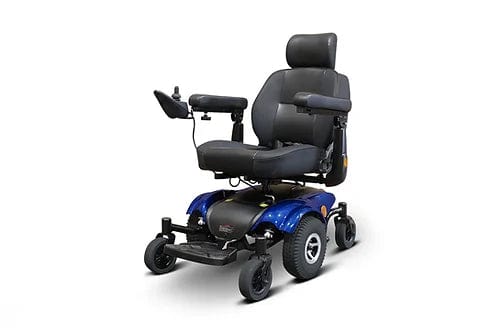

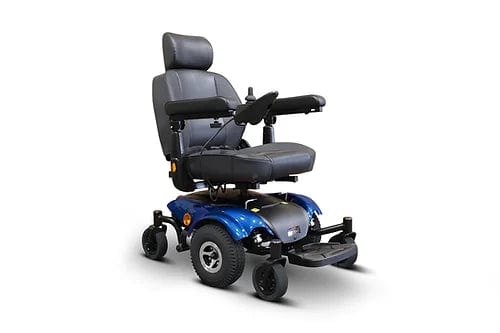

EW-M48 Blue Power Wheelchair

The EW-M48 EWheels Power Wheelchair is the ultimate in comfort and styling. The EW-M48 is equipped with a standard deluxe 20” captains seat which features an adjustable angle backrest, flip-up armrest and a swivel seat. The EW-M48 uses a unique 10” front wheel set-up that positions the drive wheel forward at the user’s center of gravity, making it extremely stable and high performing on all types of surfaces. Featuring a 300 pound weight capacity, 4.2 mile top speed, 24” turning radius and a battery charge distance of 14.2 miles, the EW-M48 makes handling daily mobility activities a breeze!

EW-M48 Manual (click here to download PDF)

Key Specs:

Seat Width: 20” deluxe captain seat

Ultra-Comfort Front, Rear & Center Suspension

Top Speed: 4.2 mph

Turning Radius: 24”

Weight Capacity: 300 lbs.

General Specifications:

Swing-Away joystick: Yes

Lap Belt: Yes

Turning Radius: 24”

Optional Left or Right Hand Joystick: Yes

Brake: Electro-Mechanical

Frame Material: Aluminum

Top Speed: 4.2 mph

Adjustable Variable Speed: Yes

Self-Diagnostic Warning Lights: Yes

Battery Charge Distance: 12.4 miles

Drive Type: 2 Motor Mid-Wheel Drive

Grade Climbable: 6 degree

Foldable: Yes

Footplate: Large Flip-up Footplate

Adjustable Footplate: Yes, 3-Angle Adjustment

Ground Clearance: 2.4”

Seat Type: 20” Swivel Captain Seat with Adjustable Headrest & Seat Height

Adjustable Armrest: Yes, Width and Height

Removable Seat: Yes

Seat Width: 20”

Seat Depth: 19”

Seat to Floor Height: 21”

Overall Width: 24”

Overall Length: 39”

Overall Height: 42.5”

Electric Horn: Yes

Battery Gauge: Yes

Free Wheel Levers: Yes

Joystick Options: Right or Left

Extendable Joystick Adjustment: Yes

Frame Type: Aluminum

Battery: (2) 12V 36AH

Battery Included: Yes

Battery Charger Type: Off Board 5A

Middle Wheels: 10”

Rear Wheels Size: 6”

Front Wheels Size: 6”

Solid Flat Free Wheels: Yes

Base Product Weight: 181 lbs.

Battery Pack Weight: 49.6 lbs.

Weight Without Batteries: 131.4 lbs.

Anti-Tip Wheels: Yes

Rear & Side ReNlectors: Yes

Weight Capacity: 300 lbs.
