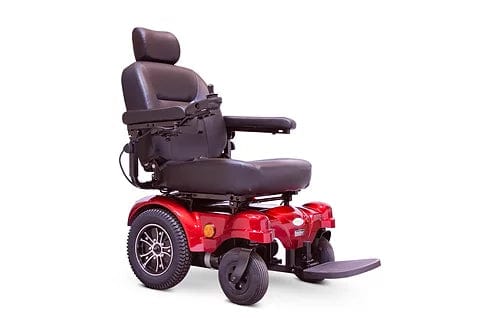

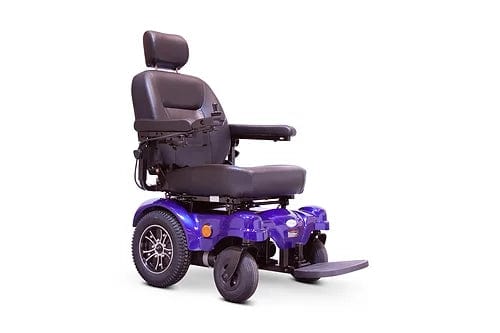

The rear-wheel-drive EW-M51 is the largest of the EWheels Medical Power Chair family. It is capable of speeds up 5 mph using 9” front
and 14” rear tires that also provide excellent traction and control. The stability suspension system ensures a smooth and steady ride. It
comes standard with a 22” reclining captain’s chair with a swing-away joystick. An adjustable footplate is also provided for extra comfort. For maximum support, a stability suspension system is provided to ensure a
smooth and steady ride.
EW-M51 Spec Sheet (click here to download PDF)
General Specifications:
Swing-Away joystick: Yes
Lap Belt: Yes
Variable Speed Dial: Yes
Turning Radius: 31”
Optional Left or Right Hand Joystick: Yes
Brake: Electro-Mechanical
Top Speed: 5 mph
Self-Diagnostic Warning Lights: Yes
Battery Charge Distance: 15 miles
Drive Type: 2 Motor Rear-Wheel Drive
Grade Climbable: 8 degree
Footplate: Large flip-up Footplate
Adjustable Footplate: Yes, You can change the foot plate angle and height
Ground Clearance: 3.4”
Seat Type: 22” Swivel Captain Seat with Adjustable Headrest & Seat Height
Adjustable Armrest: Yes, width adjustable
Removable Seat: Yes
Removable Batteries: Yes
Seat Width: 22”
Seat Depth: 21”
Seat to Floor Height: 22”
Overall Width: 25”
Overall Length: 44”
Overall Height: 46”
Electric Horn: Yes
Battery Gauge: Yes
Free Wheel Levers: Yes
Joystick Options: Right or Left
Extendable Joystick Adjustment: Yes
Battery: (2) 12V 50AH
Battery Included: Yes
Battery Charger Type: Off Board 5A
Rear Wheels Size: 14”

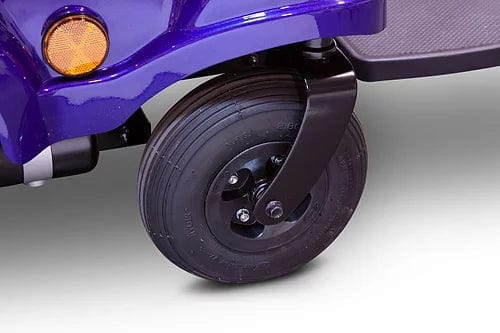

Front Wheels Size: 9”
Base Product Weight: 224 lbs.
Battery Pack Weight: 67 lbs.
Weight Without Batteries: 157 lbs.
Anti-Tip Wheels: Yes
Rear & Side Reflectors: Yes
Weight Capacity: 400 lbs.
